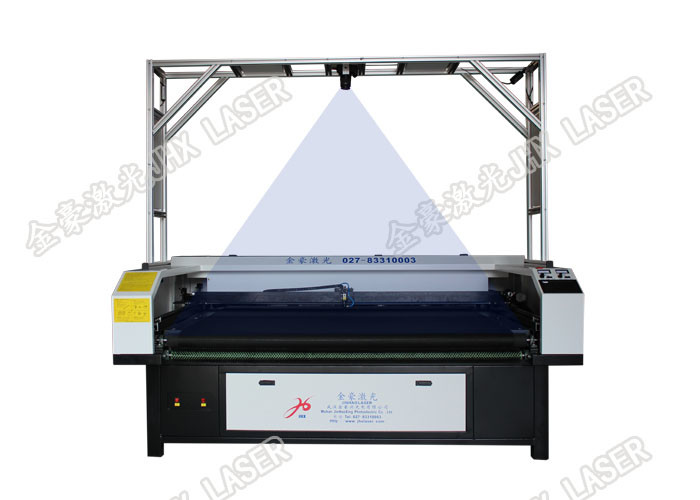

Automatic Sublimation Fabric vision camera laser machine Sports Apparel JHX-180100S
DESCRIPTION
Vision laser cutting machine is ideal for cutting digital printing sublimation textile fabrics of all shapes and sizes.
Cameras scan the fabric, detect and recognize printed contour, or pick up on printed registration marks and cut the chosen designs with speed and accuracy.
A conveyor and auto-feeder is used to keep cutting continuous, saving time and increasing production speed.
Step 1 Loading the dye-sublimated fabrics to the conveyor working table of laser cutter.
Step 2 HD Cameras scan the fabrics, detect and recognize the printed contour, and send the information to laser cutter.
Step 3 Set the cutting parameters. Press "start" button on laser cutter. Then the cutting machine will do cutting automatically.
Step 4 Laser cutting and repeat the while process.
Features
• Save tool cost and labor cost.
• Simplify the entire process. Automatic cutting from roll fabrics.
• High output (1000pcs of jersey per day per shift - only for reference)
• No required the original graphics files.
• High precision - accurately cut out any designs.
• Distortion compensation - Vision laser cutting system automatically compensates for any shrinkage or distortion that may occur during the sublimation process.
• Save tool cost and labor cost.
Material & Application
√ Sportswear (basketball jersey, football jersey, baseball jersey, ice hockey jersey)
√ T-shirt, polo shirt
√ Cycling apparel
√ Active wear, leggings, yoga wear, dance wear
√ Swimwear, bikinis.
√ Flags, banners
√ Home textile furnishing
√ Printed Toys
Technical specification
| Product model | JHX-180100S |
| Laser Type | Hermetic and detached CO2 laser tube |
| Laser Power | Option: 100W/130W/150W |
| Working Area(mm) | 1800×1000 |
| software | JHX professional controlling software |
| Cooling | Water-cooling |
| Cutting speed | 0-50000mmmin |
| Positioning accuracy | ≦±0.01mm |
| Cutting power control | Fine tuning possible |
| Working Voltage | 220V±10%, 50-60HZ |
| Moving system | Imported servo system |
| Auxiliaries | Wind pump, Wind pipe etc |
| Data Format | AI,BMP,PLT,DXF,DST |
APPLICATION VIDEO
COLLOCATION
Manual Feeder Auto Feeder
Cutting for basketball jersey, football jersey, baseball jersey, ice hockey jersey
